Handling Robots
The Handling Robot is an advanced automated solution designed to streamline material handling tasks across various industries. Equipped with state-of-the-art sensors, precise actuators, and sophisticated software, this robot ensures efficient, accurate, and safe handling of materials, contributing to enhanced productivity and reduced labor costs.
Technical Parameters
| Basic Parameters | Degrees of Freedom | 6 |
|---|---|---|
| Specified Load | 6kg | |
| J3 Additional Load | 12kg | |
| Body Mass | 164kg | |
| Repeatability | ±0.05mm | |
| Installation Method | ground/side wall | |
| Battery Capacity | 2.5 KW | |
| Voltage | 380V | |
| Brake | all with brake |

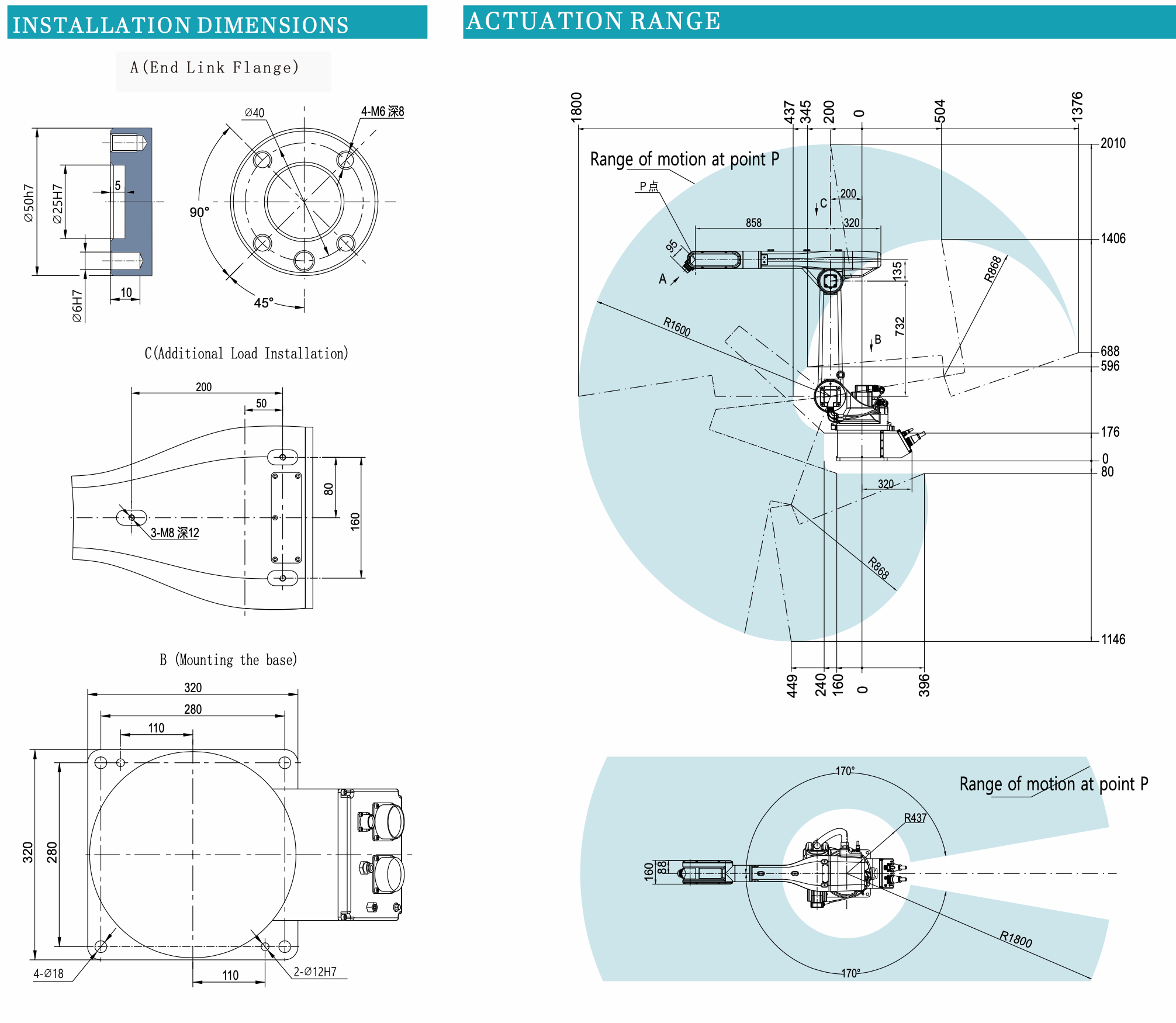

| Range of Motion | Maximum Reach at P | 1800mm |
|---|---|---|
| Minimum Reach at P | 437 mm | |
| J1 | ±170° | |
| J2 | -160° ~ +80° | |
| J3 | -85° ~ +90° | |
| J4 | ±360° | |
| J5 | ±120° | |
| J6 | ±360° |
| Maximum Speed | J1 | 138°/s |
|---|---|---|
| J2 | 138°/s | |
| J3 | 223°/s | |
| J4 | 168°/s | |
| J5 | 270°/s | |
| J6 | 337°/s | |
| Speed | 1.5 m/s |
| Allowable Moment | J4 | 15.0 N·m |
|---|---|---|
| J5 | 15.0 N·m | |
| J6 | 5.0 N·m |
| Other | End Flange | solid |
|---|---|---|
| Change to 5 Axis | yes | |
| Custom Gantry Mount | yes | |
| Isolation Transformer | yes | |
| Main Purpose | handling/palletizing/l oad and unload/ painting |
